Midmark DC Digital Dental Radiography System

MIDMARK DC DIGITAL DENTAL RADIOGRAPHY SYSTEM

Unprecedented quality and stability

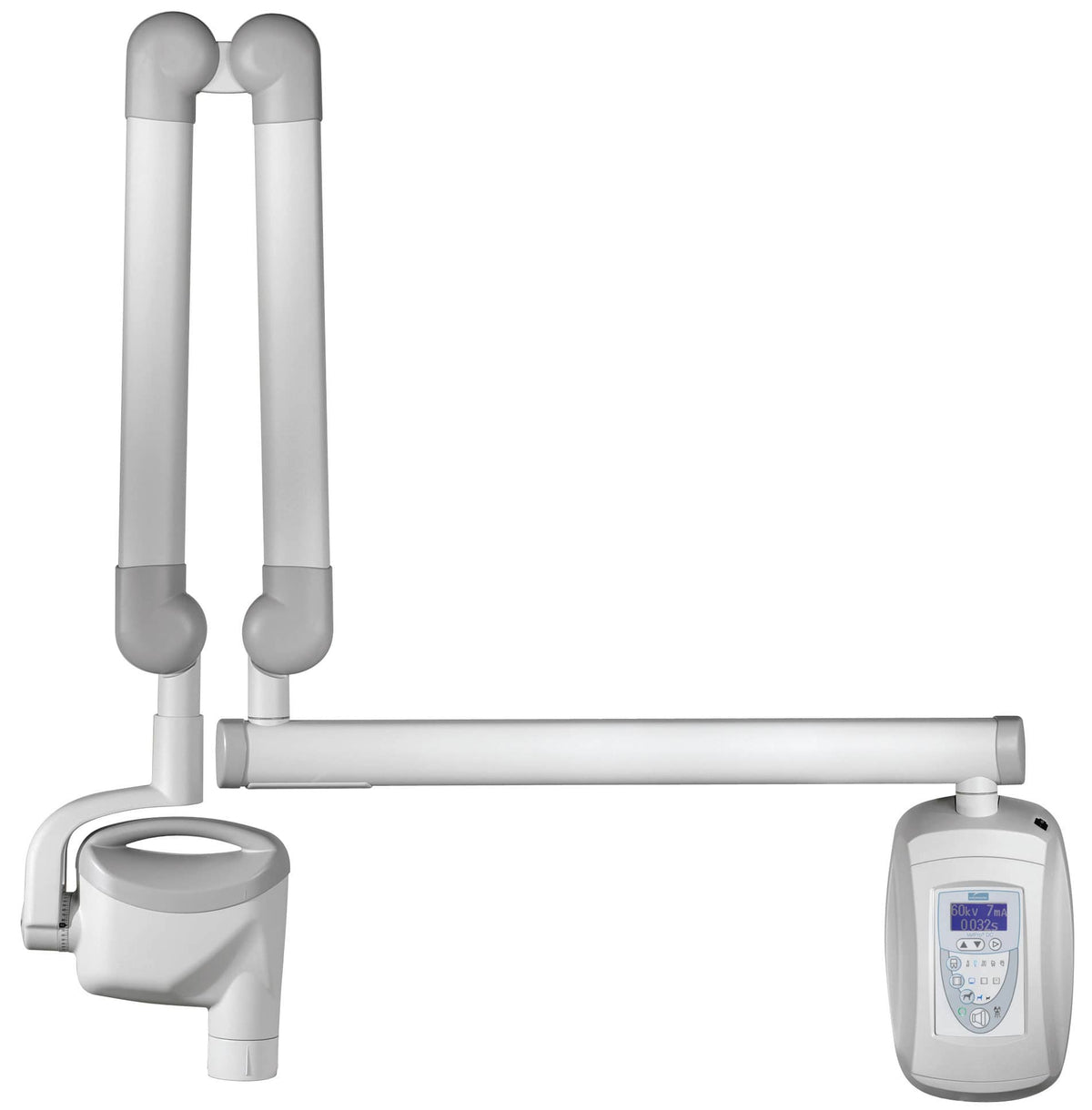

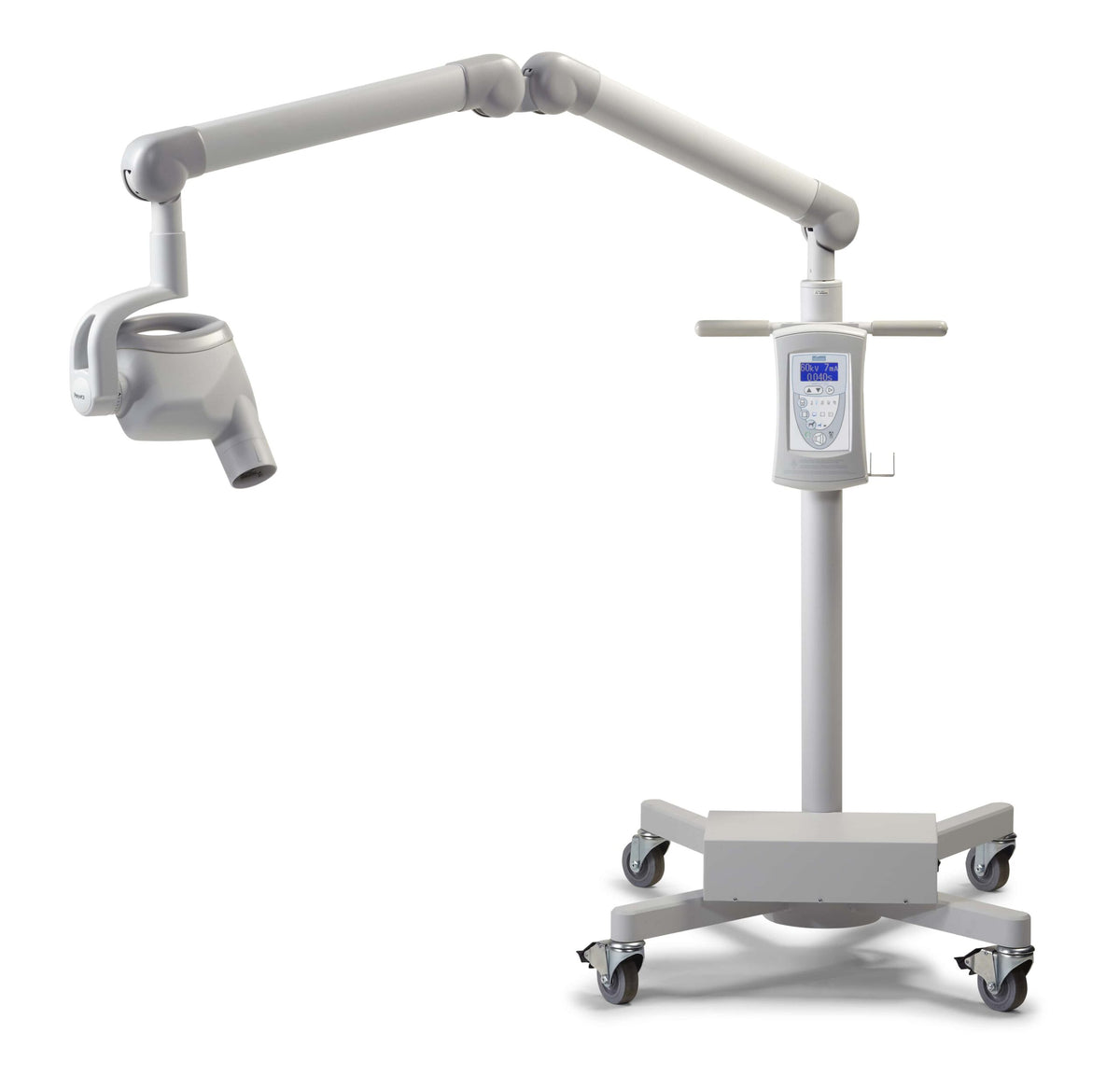

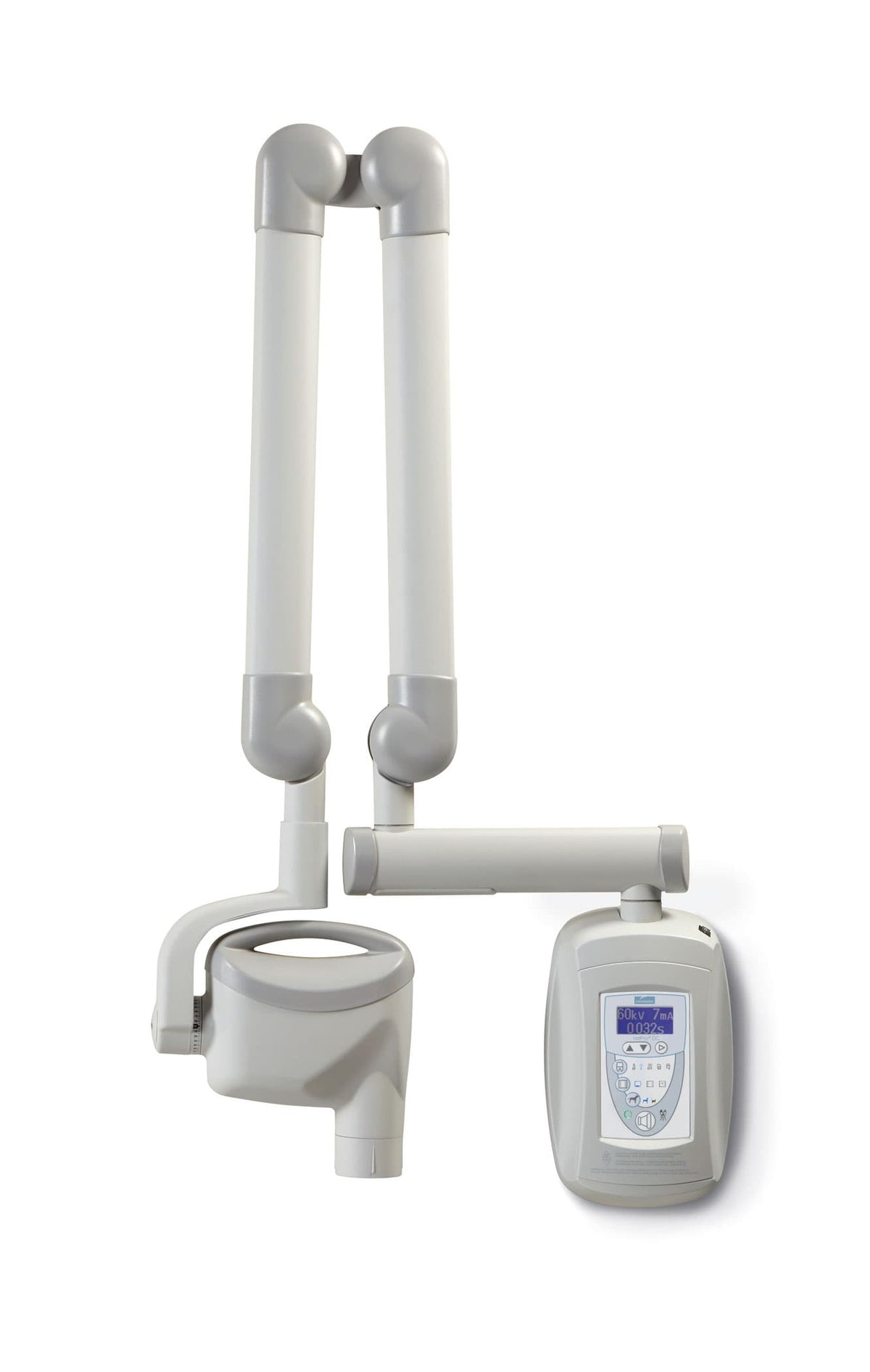

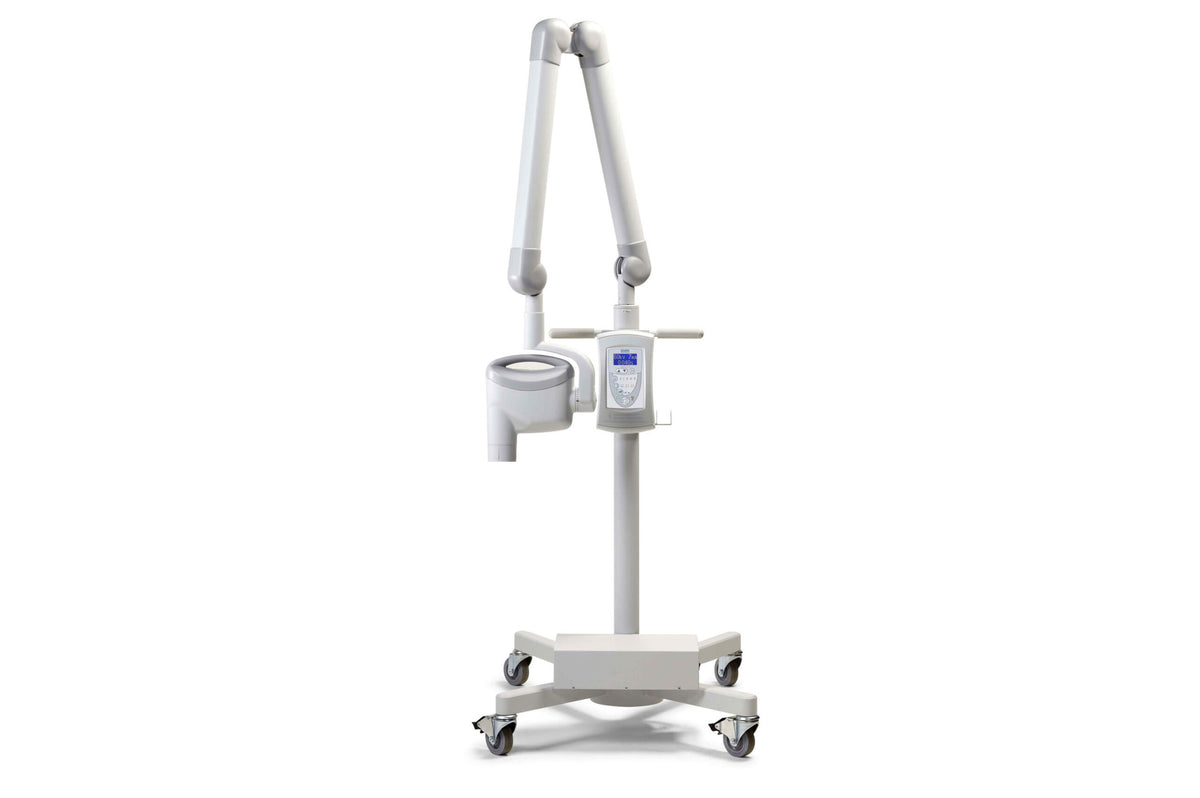

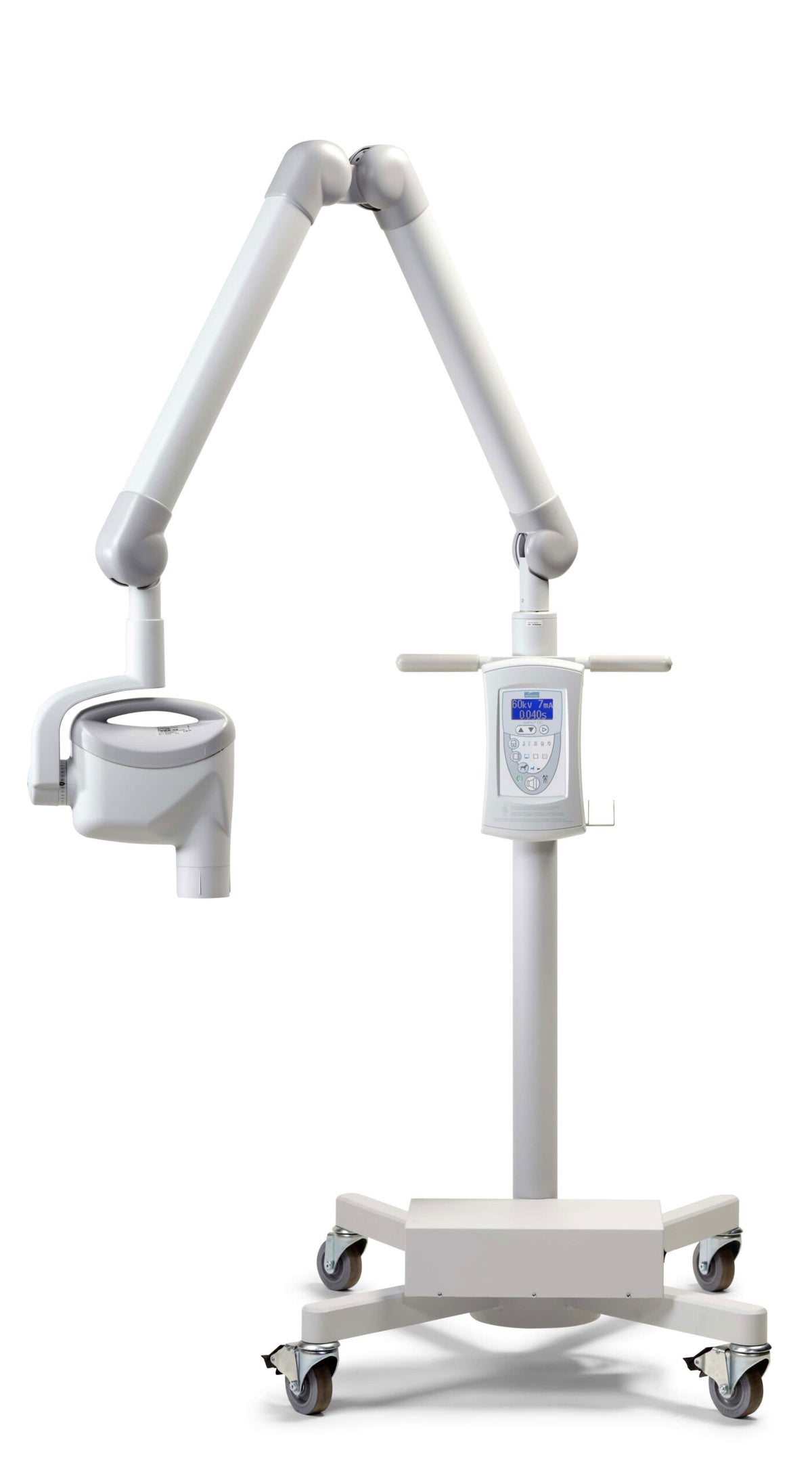

High-tolerance frictionless joints provide amazingly smooth arm movement, and a heavy duty dual braking system keeps the unit in place for precise and stable positioning. A unique tube head handle lets you effortlessly put the X-ray source where you want it, with just one hand. Midmark DC is available with a 56″, 66″, 76″ or 82″ arm length or as a versatile mobile system.

Enhance your clinic’s efficiency

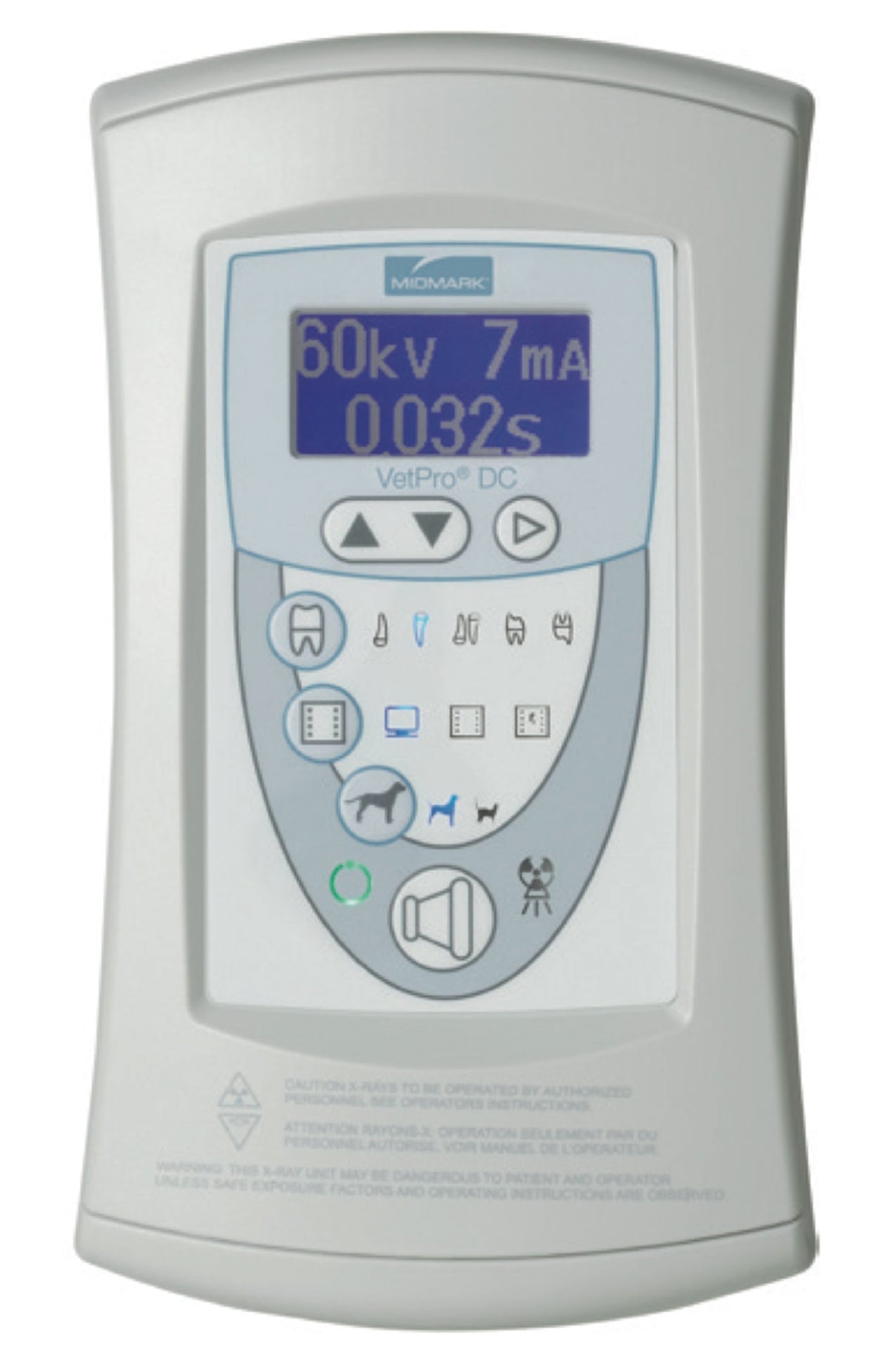

Simple-to-understand icons and a large, easy-to-read display make the Midmark DC simple to use. You can select the mA, kV and time settings or choose the convenient pre-programmed technique setting for fast procedure readiness.

Midmark Digital Dental X-ray Systems from Midmark are the best solution for your dental X-ray needs:

• The most intuitive, easy to use, veterinary-specific software and control panel on the market (select a tooth and take a shot)
• DC technology allows you to adjust kVp (60, 65 and 70) and mA (4, 5, 6 and 7) perfect for today’s digital environment
• Midmark Digital Dental X-ray Systems are the best solution for your dental X-ray needs.
• 0.4 mm focal spot, (smallest in the industry) produces visibly higher resolution images
• Superior construction–made in the U.S.A

Product details and specifications

Line Voltage: 120-230 VAC +/- 10% 50-60 Hz

Line Load: Maximum current amps

Tube Potential: 60, 65 or 70 kV

Tube Current: 4, 5, 6 or 7 mA

Exposure Time: 20 ms to 2 seconds

Cone Length: 20 cm (8 inches)

Minimum Inherent Filtration: 2 mm Al equivalent at 70 kV

Focal Spot: 0.4 mm (IEC 336)

Duty Factor: 1:15

Remote exposure hand switch included

Shipping Weight: 95 lb (wall mount) / 330 lb (mobile)

Applicable Documents Federal Regulations: 21 CFR, UL, CE

Warranty: 2 years, limited

Options: choice of 56″, 66″, 76″ or 82″ (total reach); double stud mounting plate
