Midmark DR Digital Dental Sensor

Say hello to the world’s first and only veterinary-specific, bite-resistant sensor.

We’ve combined our unsurpassed image quality with a patented sensor housing to provide clear, crisp images with unmatched resistance to bite damage—FOUR TIMES stronger than our standard sensor! In fact, we’re so confident in the quality and durability of the Midmark DR, we have the best warranty in the market. IF damage occurs within the first five years, we will replace your Midmark DR sensor at no charge. Features include:

• Patented bite-resistant sensor housing design
• Free software along with free clinical and technical support

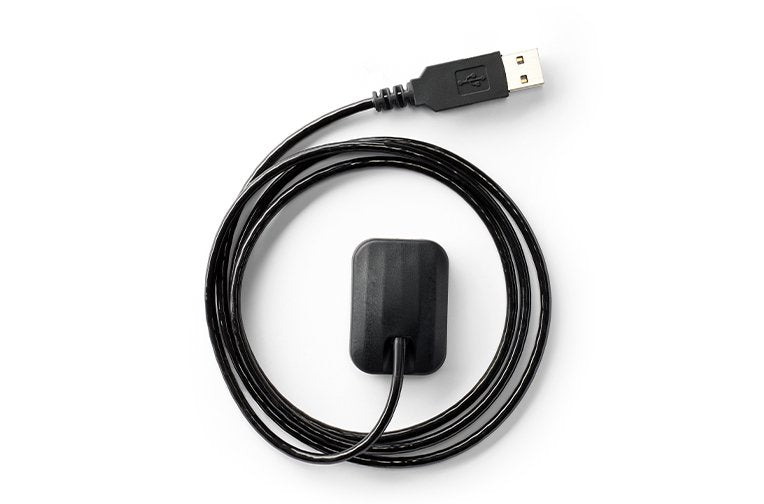

• Kevlar^® reinforced cable, designed for improved durability
• 5 year manufacturer’s warranty provides one free replacement sensor at no charge should damage occur

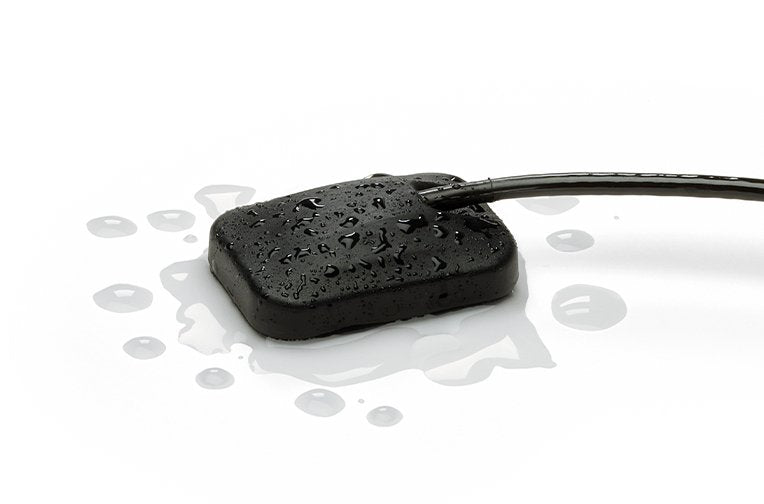

• Waterproof, hermetic seal, designed to reduce problems encountered during routine cleaning
• CMOS technology, designed to deliver enhanced image quality
• High-speed USB connection, designed to capture images 37% faster

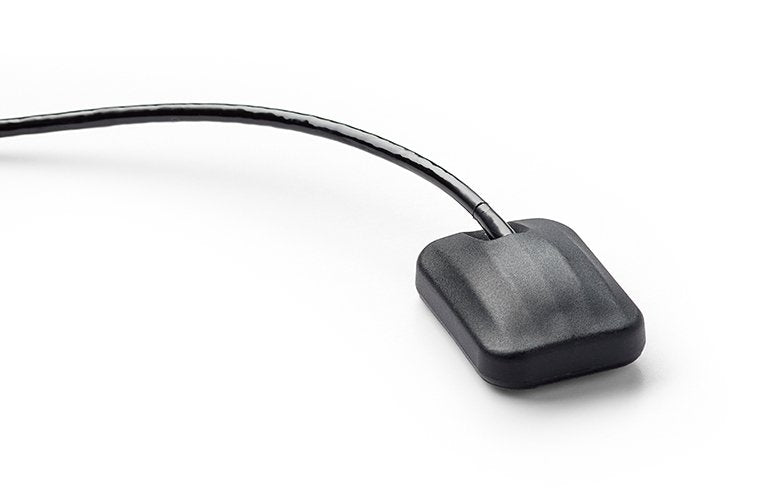

• Rounded corners means easier positioning in tight spaces for better capture of roots

Product details and specifications

Dimensions: Size 1 (film size equivalent) 37.7 x 25.35 x 7.8 mm / Size 2 (film size equivalent) 43.8 x 31.5 x 7.8 mm

Active Area: Size 1 (film size equivalent) 30 x 20mm / Size 2 (film size equivalent) 36 x 26 mm

Number of Pixels: Size 1 (film size equivalent) 1580 lines x 1050 pixels / Size 2 (film size equivalent) 1896 lines x 1368 pixels

Pixel Size: 19 x 19 µm

Theoretical Resolution: 26 lp/mm

Levels of Grey: 4096

Connection Type: High-speed USB 2.0

Sensor Cable Length: 3 meters

Warranty: Midmark DR Sensor (Bite-resistant) – Manufacturer defect as determined by Midmark for a period of 5 years. If there is a catastrophic event making the sensor not function, it will be replaced at no charge the first time.
