Midmark · Veterinary Equipment

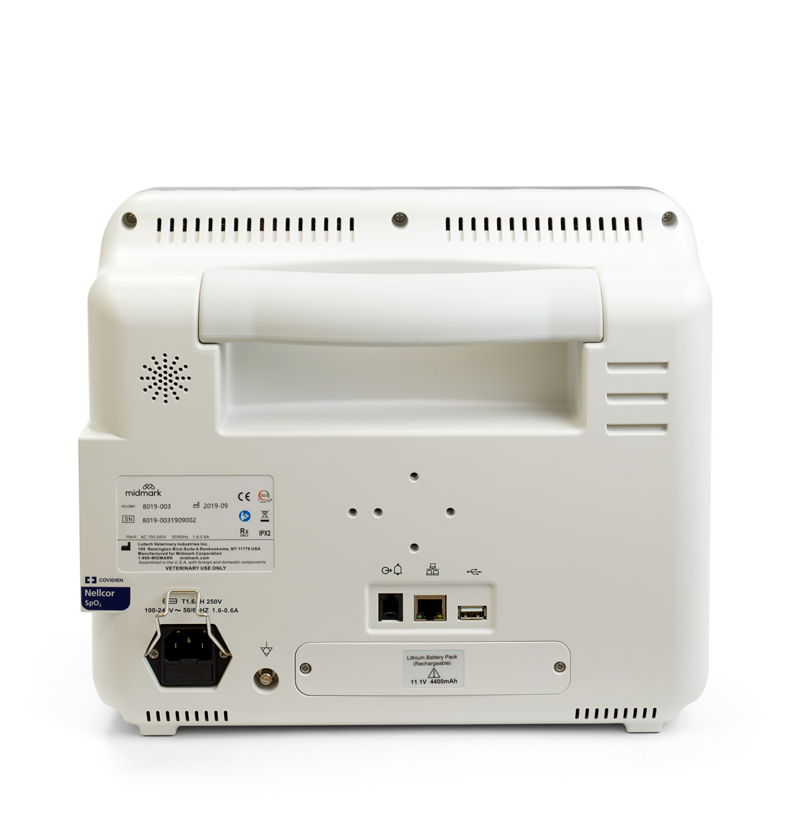

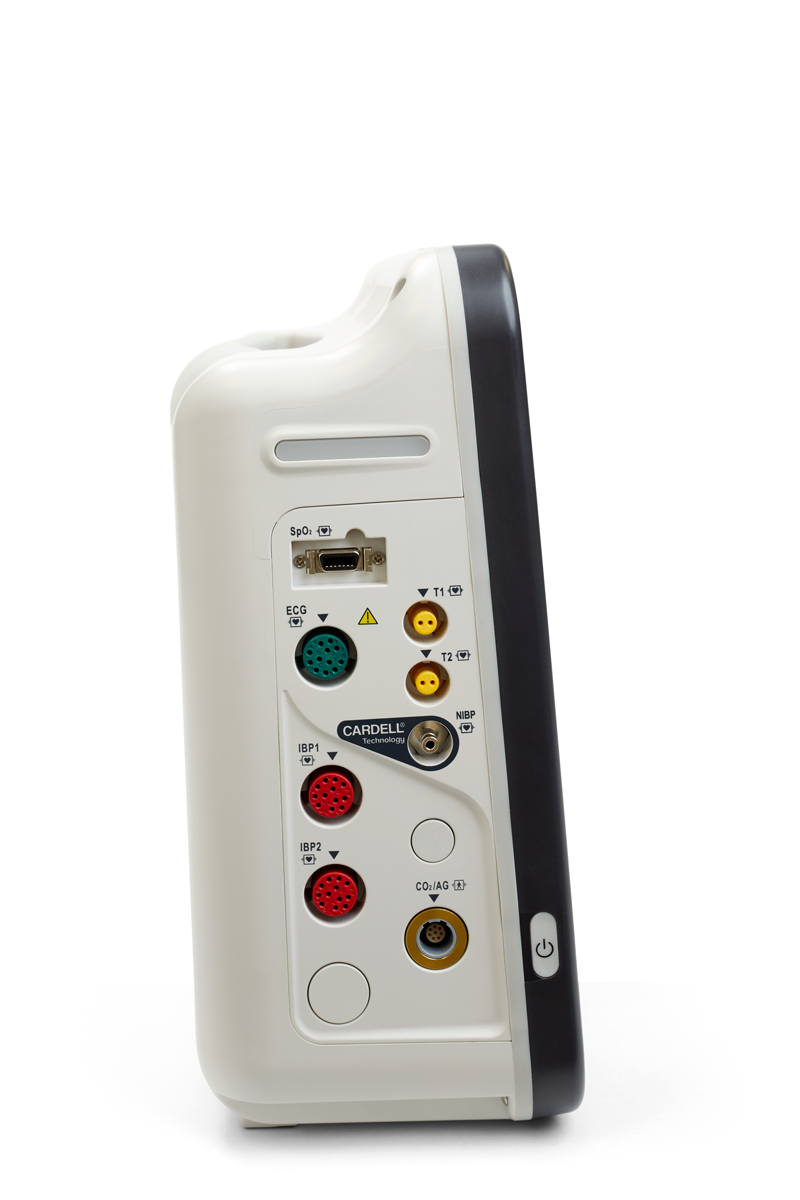

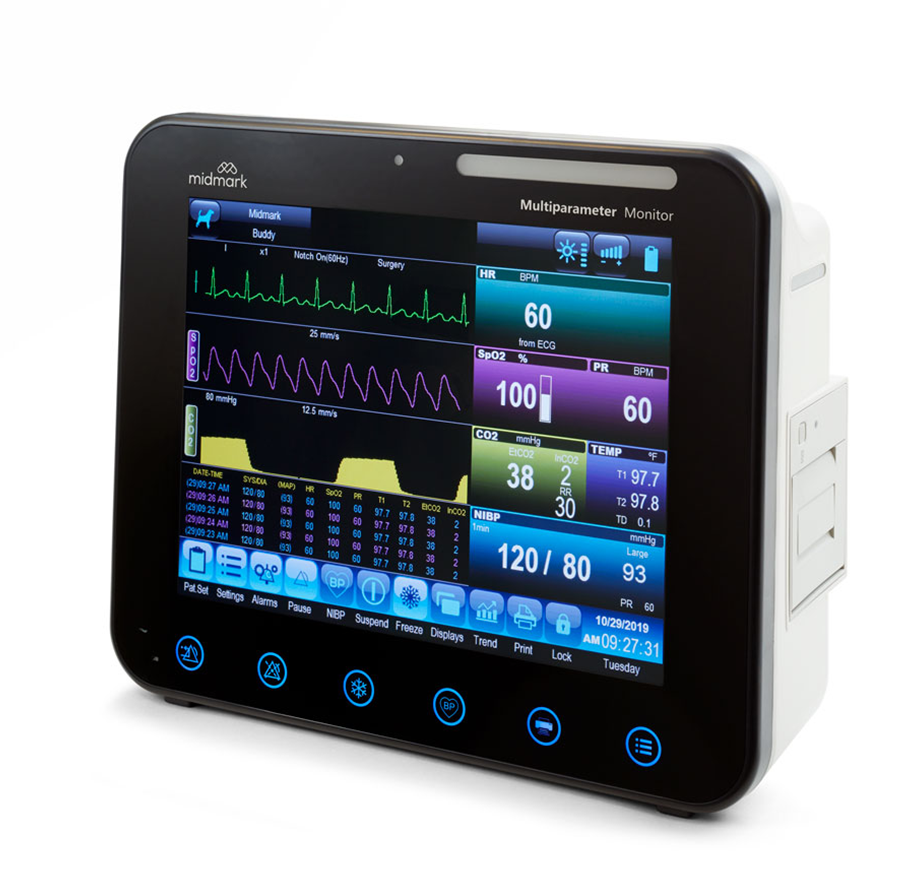

Midmark Multiparameter Monitor

Available on quotation

Request pricing and availability for your required model, configuration and quantity.

Request a quote

For veterinary practices, hospitals and animal healthcare professionals.

The Midmark Multiparameter Monitor is equipped with Cardell® blood pressure technology, veterinary-specific algorithms and innovative, staff-friendly capabilities. Relying on decades of clinical experience responding to common anaesthesia issues, we designed these enhanced features to help your team avoid pitfalls and prevent anaesthesia complications.

Product details and specifications

Dimensions/Weight

4.2 KG (monitor and base) 13 x 33.5 x 28 cm

Electrical

Voltage: AC 100 – 240 V

Parameters

NIBP: Cardell® BP Technology

Pulse Oximetry (SpO2): Nellcor® Oximax®

CO2 Monitoring:

Respironics® CAPNOSTAT® 5 Mainstream
Respironics® LoFlo™ Sidestream

ECG: 3-Lead Standard, 5-Lead Optional

HR/PR: ECG HR/SpO2 and NIBP PR

Temperature: 2-Channel

Respiration Method:

Indirect: Impedance,
Direct: Capnography (optional)

Invasive Blood Pressure: 2-Channel (optional)

Anesthetic Gas: Masimo® Multigas Mainstream or Sidestream (optional) CO2, N2O, ISO, SEV, ENF, DES, HAL

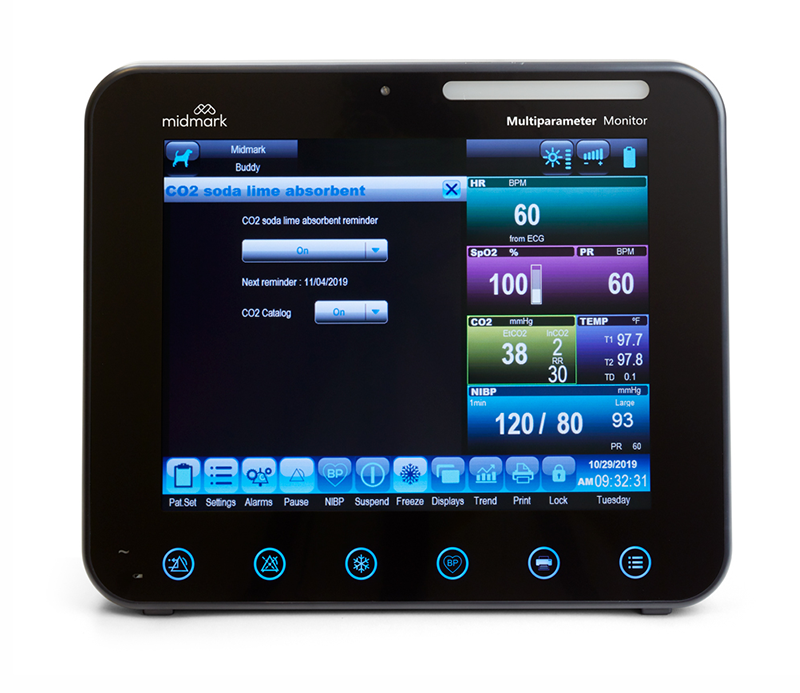

Display: 12.1″ LCD Resistive Touch Screen

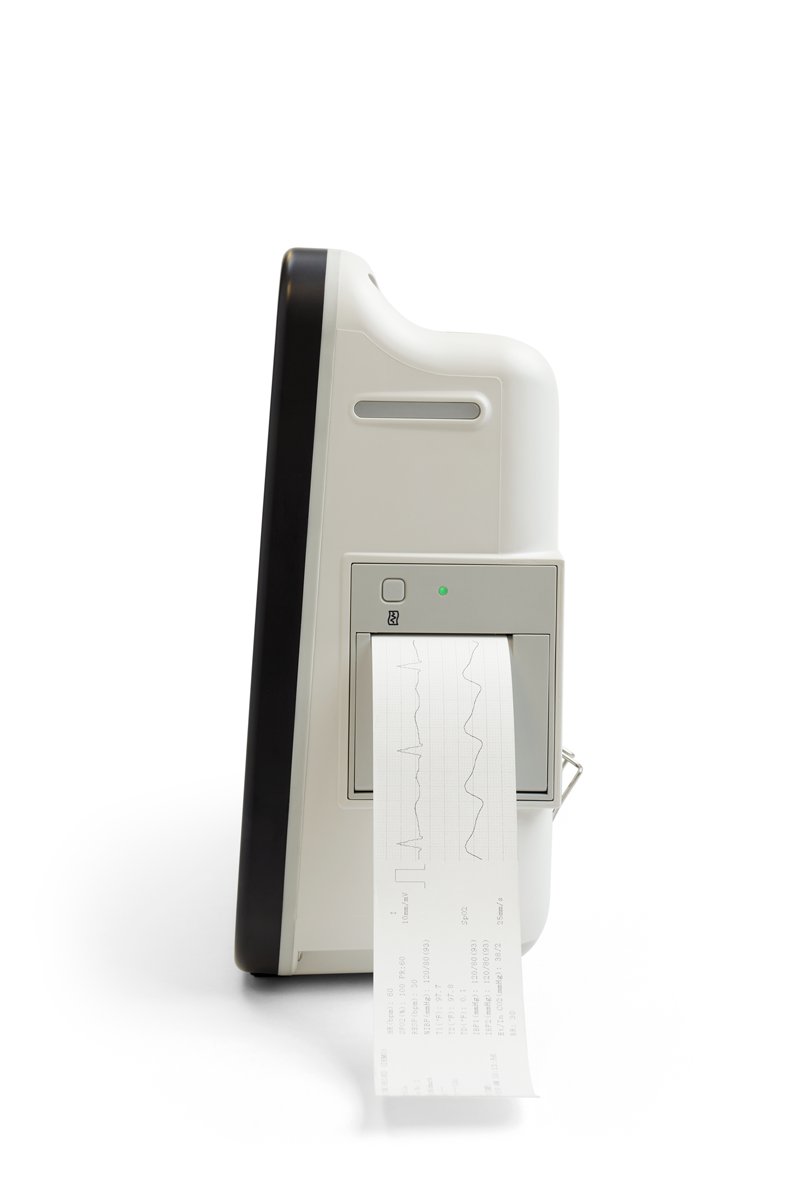

Printer: 3-Channel (optional)

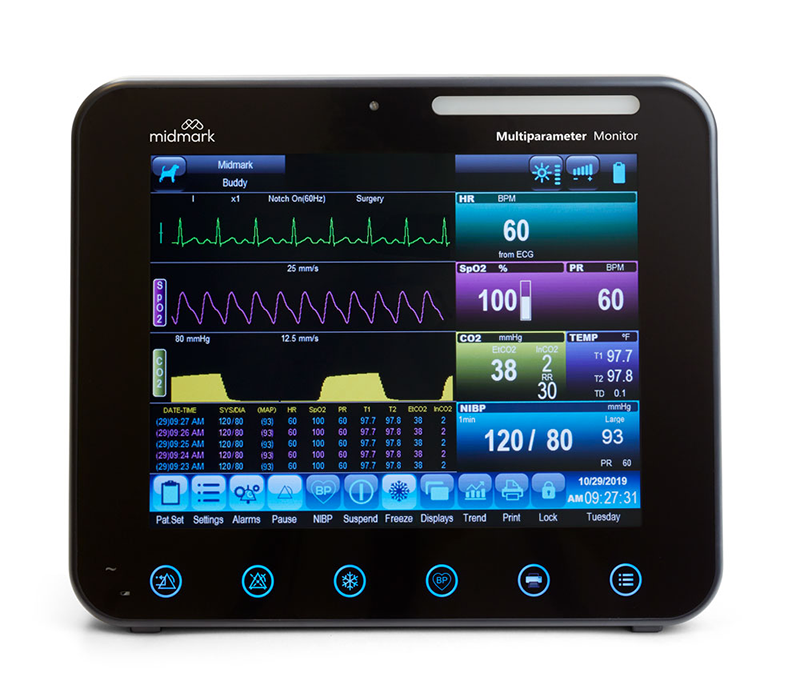

Waveform Display:
6 Channel with IBP and Multigas Options
3-4 Channel Standard Display

ECG Vector Waveform Display:
7-Channel with 5-Lead Option
1-Channel with 3-Lead Option

ECG Gain: Auto, x0.25, x0.5, x1, x2, x4

HR/PR Range:
ECG HR = 15-350 bpm
SpO2 PR = 20-300 bpm

NIBP Modes: Manual, Auto, Continuous, Screen

Graphical Trends: 168 hours

Tabular Trends: 168 hours

Parameter Alarms: User-Defined High/Low with 4 Defaults (cat, dog, horse, other)

Download to PC: USB Drive
